Customized Putanka Tank Wire Mesh Anti Tank Track Wrapping Wire Mesh Reduce Tank

Name: Customized Putanka Tank Wire Mesh Anti Tank Track Wrapping Wire Mesh Reduce Tank
Brand: BINGZE
SKU: BZ018
Rating: 4.9 (173 reviews)

Product Details

Place of Origin: Hebei,China

Brand Name: BINGZE

Certification: ISO9001:2015

Model Number: BZ018

Payment & Shipping Terms

Minimum Order Quantity: 50 sets

Price: Discuss

Packaging Details: Both inside and outside are wrapped in plastic film,wooden case

Delivery Time: 15-20 days

Supply Ability: 10000 sets per day

Get Best Price

Product Details

Product Description

Highlight:

Model Number:	Tank Net	Material:	Iron
Surface Treatment:	Black	Wire Diameter:	0.4-0.9mm
Function:	Battlefield Tank	Package:	Wooden Pallet+Plastic Film
Advantage:	Invisible Wire Net	Certification:	ISO, SGS

Model Number:	Tank Net
Material:	Iron
Surface Treatment:	Black
Wire Diameter:	0.4-0.9mm
Function:	Battlefield Tank
Package:	Wooden Pallet+Plastic Film
Advantage:	Invisible Wire Net
Certification:	ISO, SGS

Customized Putanka Tank Wire Mesh Anti Tank Track Wrapping Wire Mesh Reduce Tank

Anti Tank Barrier Wire Mesh Used in Modern Warfare Tank Track Wrapping Wire Mesh

Fence Mesh Tank Wire Security Covert Defense Drone Net Interception Hidden Inconspicuou Russia Border Putanka Barrier
Inconspicuous wire obstacle are intended to impede movement, hinder the advance and maneuver of violators of the state border, provide border units and reserves with favorable conditions for blocking and detaining them, limit the action of animals and people on signaling and control means.

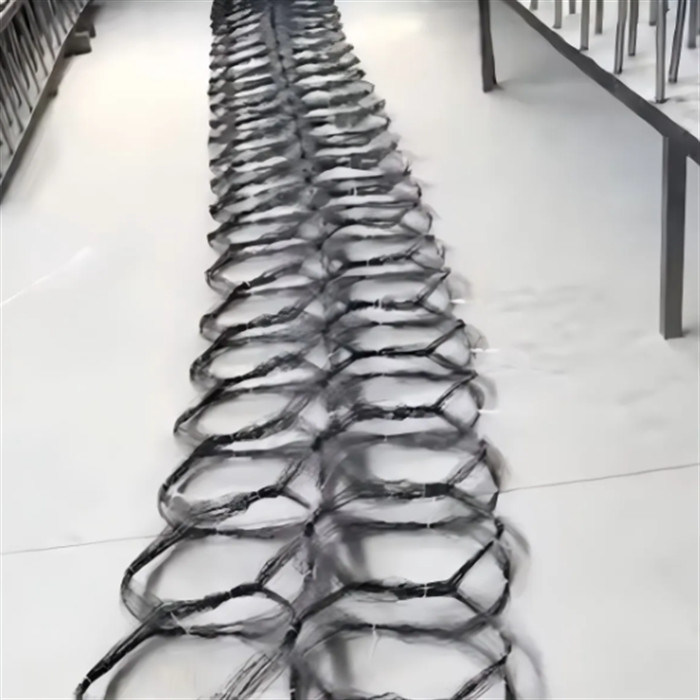

inconspicuous obstacle Wire woven into rings into a garland. When opened, it forms a ground covering of wire garlands, which prevents people from entering the closed facility.

What happens when you hit an inconspicuous obstacle?
If a person tries to go through into the territory, he gets confused in it. There is no way to get out of the confusion without outside help. Therefore, the offender remains safely waiting for the guard on the spot. When an armored vehicle or tank passes, the vehicle wraps around the wheels and turns into a pile of metal on the chassis, preventing it from moving further. And it’s difficult to remove such a gift from the wheels.

Classification:

1.Wave type wire mesh, 10 meters long, 4 meters wide, 40 cm high, suitable for laying on the ground or grass.
2.Wheel-shaped wire mesh, with 10 to 20 coil into a cylindrical wire mesh piled up, with a stronger stability and protection.

Material:

Anti-tank wire mesh is made of high-strength, corrosion-resistant wire to ensure that in harsh battlefield environment can still maintain good performance. At the same time, the wire surface may be specially treated, such as adding barbs or blades, to increase the destructive power of the tank.

Product Specification

* Overall dimensions in folded form:: Length – 1200 mm, width – 600 mm, height – 120 mm.
* The main dimensions of the fence in the unfolded state:length – 10 m, width – 10 m, height – 1.2 m; - the weight of the set is no more than 30 kg.

Technical characteristics of an inconspicuous wire network
arameter	Meaning
Unfolded dimensions	10x10x1.4 m
Wire diameter / number of garlands;	0.9 mm / 20 pieces 0.8 mm / 20 pieces 0.6 mm / 20 pieces 0.5 mm / 20 pieces twist - 0.8 mm
Folded dimensions	1.2x0.6x0.8 m
Package weight without rings and peg	24 kg
Complete set of the MZP package with rings and pegs	40 pieces

measurements of the batch of MZP Putanka
Length, m	0.98	0.2
Width, m	0.68	0.4
Height, m	0.75	0.4
Volume, m 3	0.4998	0.032

Details Images

Characteristics of a subtle obstacle

The design is a 4-level garland.
The levels of the garland are connected with soft wire 0.8 mm thick
Made from black or galvanized wire
Wire diameter 0.5;0.6;0.8;0.9 mm
The delivery set includes an unobtrusive obstacle, pegs and rings.
The size when unfolded is 10x10x1.4 m
Fence spikes Single and double core barbed wire fidget spiral fence security barrier

How to install ?

1.Note! The tangle unfolds once. It is impossible to assemble the wire back into the rings, so it is important to perform all the steps correctly from the very beginning.
2.The putanka is installed on the ground, roof, fence. The layout will require from 4 to 8 people.
3.The thickest diameter wire should be at the bottom. The tangle is attached to the ground with staples every 1-2 meters.
4.The upper garlands of entanglement are attached to pegs to raise the wire fence upward and give it the required volume. The larger the minimum wange, the better the perimeter is protected.

3.Extend both rows of arcs to their full length

4.Each row spreads outwards

5. From the two rels, four rels will come out.

6. The lower jaw is fixed with screws. The screws are fixed with thick wires.

7. Grasp the propeller and move the mpp fully as shown in the figure.

8. Through this movement and stretching, the bottom will be exposed. The spiral with thin wire will extend upward. After that, the end of the thick wire spiral is fixed with nails

Application

The working principle of anti-tank is based on the track movement mechanism of the tank. When the tank tries to pass through the barbed wire, its track will have friction and winding with the barbed wire. As the tank continues to move forward, the barbed wire will gradually entangle the active wheel of the tank, forcing the tank to stop moving.
